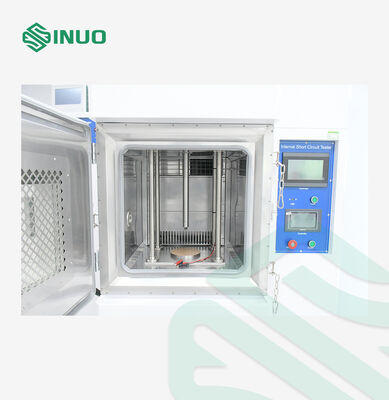

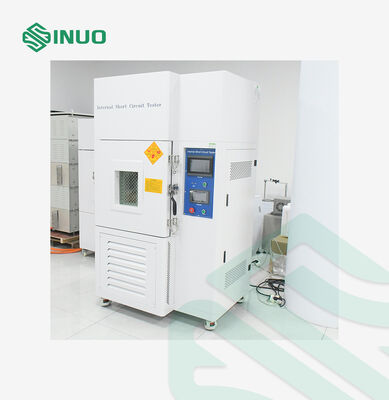

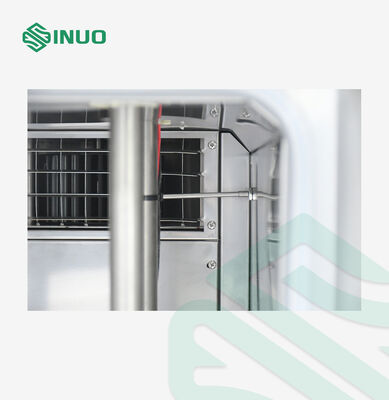

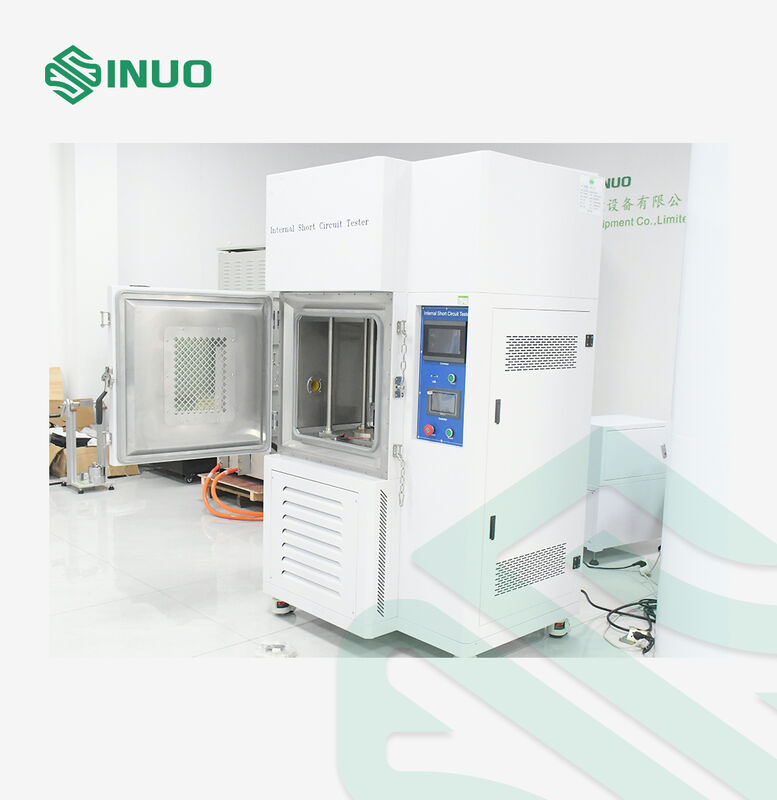

IEC 62133-2 Lithium-ion Battery Internal Short Circuit Test Equipment

IEC 62133-2 Lithium-ion Battery Internal Short Circuit Test Equipment

Marchio:	Sinuo
Numero di modello:	SN5513
MOQ:	1
Condizioni di pagamento:	T/T
Capacità di approvvigionamento:	10 set al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

Calibration Certificate (Cost Additional)

Intervallo di temperatura:

0 ~ 100℃

Fluttuazione della temperatura:

±2.0℃

Tasso di riscaldamento:

Media 3°C/min

Tasso di raffreddamento:

Media 1°C/min

Dimensione esterna della camera:

L1200XA2000XP1000MM;

Dimensione interna della camera:

L400*A500*P500mm

Gamma di forza:

1 kg-200 kg

Colpo di compressione:

0~300 mm

Imballaggi particolari:

Imballaggio per l'esportazione

Capacità di alimentazione:

10 set al mese

Descrizione del prodotto

IEC 62133-2 Lithium-ion Battery Internal Short Circuit Test Equipment

Complied Standards & Clauses

It conforms to IEC 62133-2: 2017 clause 7.3.9, JISC8714:2007 5.5, and etc.

Product Overview

This battery forced internal short-circuit tester is an integral testing equipment to performance a comprehensive test for temperature, voltage, internal-short circuit, which is applicable for battery cell safety test.

Technical Parameters

Main technical parameters of temperature control chamber
1	Temperature range	0 ~ 100℃
2	Analytical accuracy	0.1℃
3	Temperature fluctuation	±2.0℃
4	Low temperature	0℃
5	Heating rate	Average 3℃/min (from 0℃ to 100℃, non-linear no-load)
6	Cooling rate	Average 1℃/min (from 100℃ to 0℃, non-linear no-load)
7	Heater	Fin type heat pipe shaped stainless steel electric heater
8	Air supply circulation system	Convection air circulation system
9	Safety devices	Over-temperature alarm, MCCB overload protection, etc.
10	Insulation material	Rigid polyurethane foam + high-efficiency compressed glass wool
11	Thermostat	TEMMI controller imported from Korea
12	Inner chamber size	W400H500D500mm
13	Inner chamber material	Mirror stainless steel plate, bottom reinforcement
14	External chamber size	W1200 X H2000 X D1000MM;
15	External chamber material	Cold rolled steel paint treatment
Main technical parameters of force test system
1	Force range	1kg-200kg
2	Unit	Kg/N/Lb
3	Squeeze stroke	0~300MM
4	Force display accuracy	1N
5	Resolution	1/10,000
6	Force accuracy	≤0.5％
7	Speed display accuracy	1mm
8	Driven type	Servo motor drive
9	Squeeze speed	The squeeze speed is adjustable. The speed of the first contact point during squeeze can be set to 1.5cm/s; the test process speed range is 0.01~900MM/MIN (adjustable, 0.1~1.5CM/S)
10	Squeeze head size	10105mm or 10102mm
11	Squeeze head material	One piece each of nitrile rubber (NBR, side 10mm, thickness 2mm) and acrylic (acryl, side 5mm, thickness 2mm)
12	Squeeze workbench material	Aluminum alloy plate or 316 stainless steel plate, corrosion resistant
13	Suitable Battery size	300 X 300 X 300mm(WXDXH)
14	Visual window	300 X 300mm explosion-proof glass
15	Air supply outlet	There are two air supply vents on the left side of the box.
16	Lighting	There is a lighting lamp inside the box, which can illuminate the entire testing space
17	Voltage collection range	0-100V, acquisition frequency 100HZ/second
18	Voltage resolution	0.1mv
19	Voltage acquisition frequency	100/s
20	Deformation range	0-300MM
21	Max. test plane	300X300MM
22	Power supply	220V 50HZ
23	Power	2.0KW
24	Machine weight	Approx.350KG
